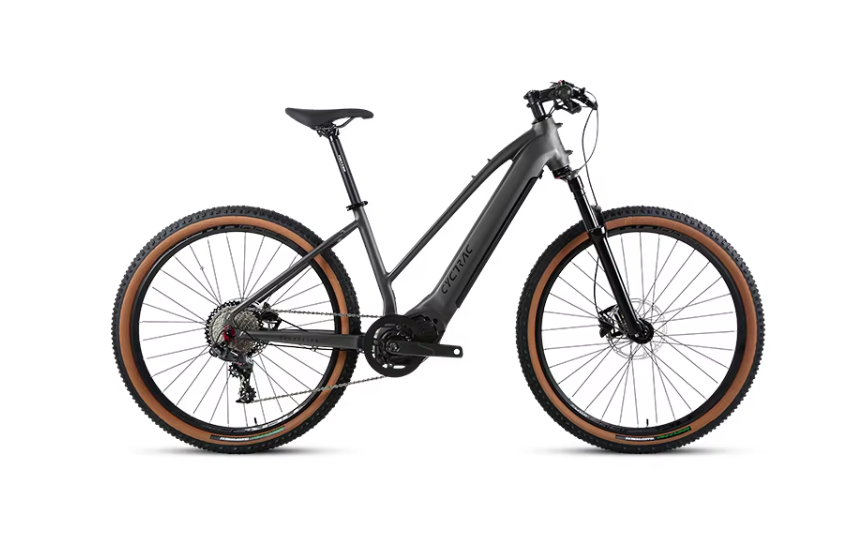

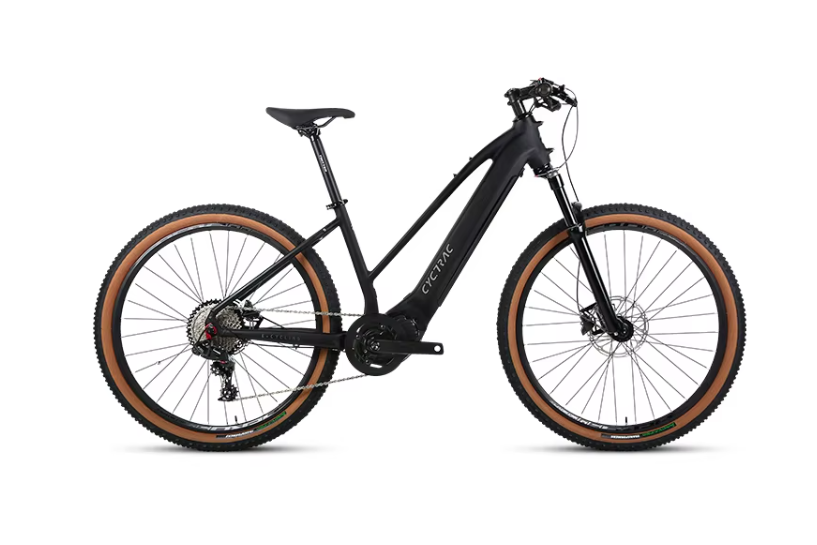

CYCTRAC EC1 Electric Mountain Bike 27.5" | Bafang M560 Mid-Drive E-MTB

⚡ Power Meets Adventure

Take your riding experience to the next level with the CYCTRAC EC1 Electric Mountain Bike, a high-performance e-MTB engineered for trail riders, commuters, and outdoor enthusiasts. Featuring the powerful Bafang M560 Mid-Drive Motor, a premium Samsung 720Wh Battery, and up to 140Nm of torque, the EC1 delivers exceptional climbing power, long-range capability, and reliable performance on any terrain.

Whether you're tackling steep mountain trails or exploring new adventures, the CYCTRAC EC1 is built to perform.

🚴 Why Choose the CYCTRAC EC1?

⚡ Powerful Bafang Mid-Drive System

• Bafang M560 Mid Motor
• 48V 500W Rated Power
• Massive 140Nm Torque Output
• Smooth and Natural Pedal Assistance
• Excellent Hill-Climbing Performance

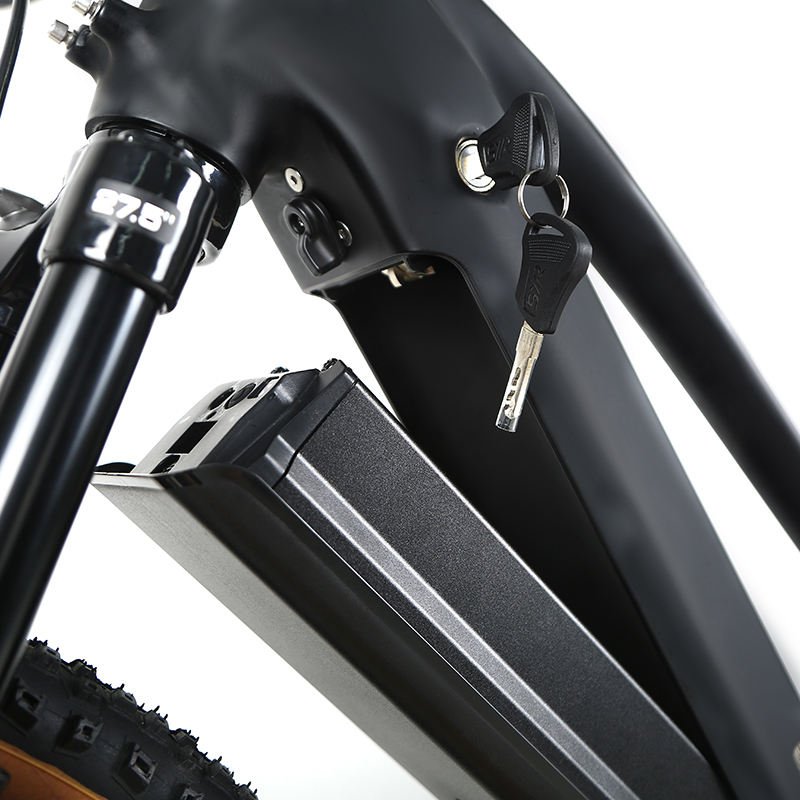

🔋 Long-Range Samsung Battery

• Premium Samsung 21700 Lithium Cells
• 720Wh Battery Capacity
• Up to 120-140km Range Per Charge
• Fast 5-6 Hour Charging
• Reliable and Efficient Power Delivery

🏔 Built for Real Mountain Riding

• Lightweight AL6061-T6 Aluminum Frame
• Internal Cable Routing
• Smooth Flat-Weld Construction
• Coil Suspension Fork with Manual Lockout
• Durable 27.5" Wheelset with CST 2.4" Tires

⚙️ Choose Your Preferred Drivetrain

Option 1 – Value Performance

• LTWOO RS 10-Speed Groupset
• Sunshine 11-36T Cassette
• Price: USD $1,250

Option 2 – Shimano Deore 10-Speed

• Shimano Deore M4100 Shifter
• Shimano Deore M4120 Rear Derailleur
• Price: USD $1,350

Option 3 – Shimano Deore 12-Speed

• Shimano Deore M6100 Groupset
• Wide-Range 11-50T Cassette
• Price: USD $1,450

🛑 Premium Hydraulic Braking

• Shimano MT200 Hydraulic Disc Brakes
• 180mm Front & Rear Rotors
• Powerful and Consistent Stopping Performance

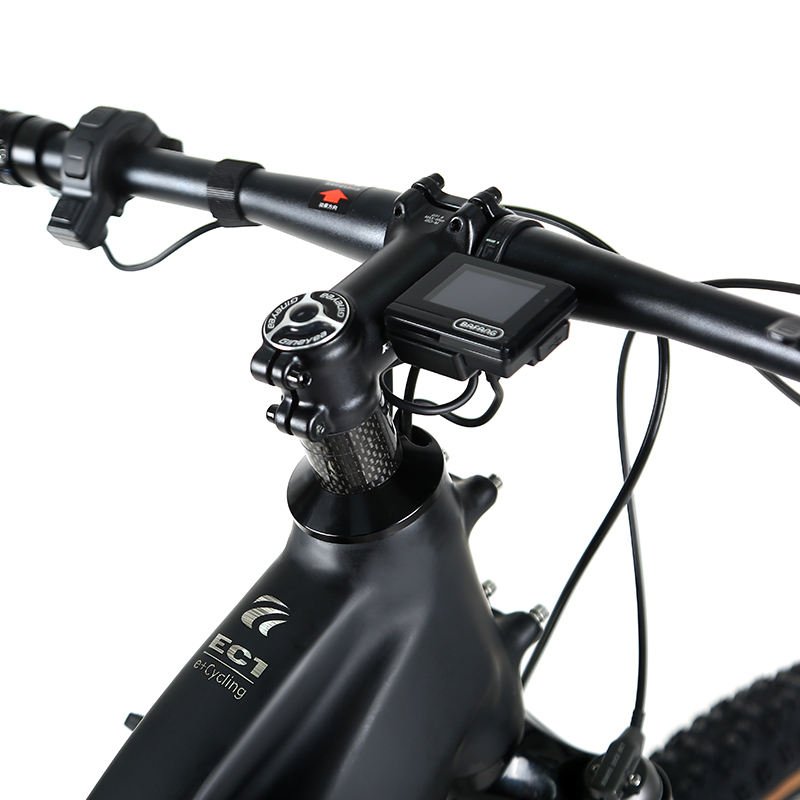

📱 Smart LCD Control Display

• CYC-C101 LCD Display
• USB Type-C Charging Port
• Real-Time Speed, Battery & Riding Data

🌧 Ride in Any Condition

• IPX6 Waterproof Rating
• Durable Components Built for Outdoor Use
• Maximum Rider & Cargo Capacity: 160kg

📋 Technical Specifications

Frame & Geometry

• Model: EC1 (SP)
• Frame Size: 27.5" × 16"
• Frame Material: AL6061-T6 Aluminum Alloy
• Net Weight: 22.5kg - 22.7kg

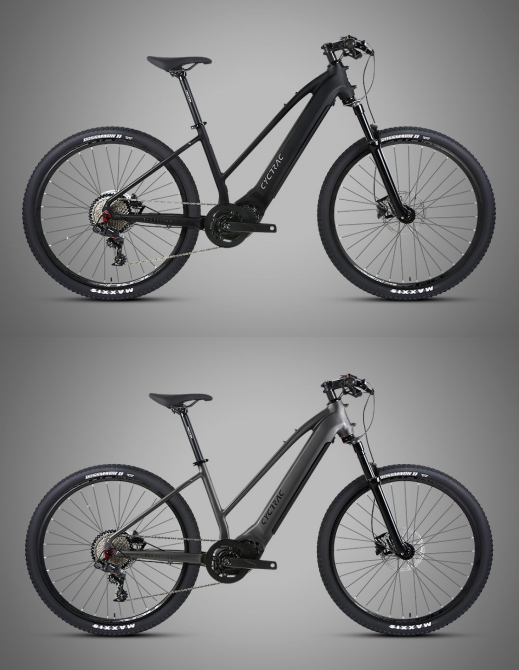

Available Colors

🖤 Matte Black
🌑 Matte Dark Gray
🩶 Cement Gray
💚 Dark Green

Electric System

• Motor: Bafang M560 Mid Drive
• Voltage: 48V
• Power: 500W
• Torque: 140Nm
• Speed Limit: 25km/h (Upgradable to 45km/h)
• Sensor: Torque + Cadence
• Throttle: Available

Battery

• Samsung 21700 Li-Ion Battery
• Capacity: 720Wh
• Specification: 48V 15Ah
• Range: Up to 140km

💥 Key Selling Points

✅ Powerful 140Nm Mid-Drive Motor
✅ Samsung 720Wh Long-Range Battery
✅ Up to 140km Riding Distance
✅ Shimano Deore 10S & 12S Options
✅ Hydraulic Disc Brakes Front & Rear
✅ Internal Cable Routing Design
✅ Comfortable Suspension Fork
✅ IPX6 Waterproof Protection
✅ USB-C Smart LCD Display
✅ High Load Capacity up to 160kg
✅ Ideal for Trail, Touring & Commuting
✅ Outstanding Performance-to-Value Ratio

🎨🔧 Build Your Dream E-Bike!

🚀 Looking for Something Unique?

✨ Custom Frame Colors Available
✨ Upgrade to 750W Motor (+USD $100)
✨ Custom Drivetrain & Component Packages
✨ OEM & ODM Manufacturing Support
✨ Private Label Branding Services
✨ Custom Specifications for Dealers & Distributors

📩 Need a custom specification, color, or component package?
🔥 Contact us before ordering and let our experts build your perfect CYCTRAC EC1 Electric Mountain Bike!
🎨 Customize your colors.
⚙️ Upgrade your components.
🚴 Create the ultimate e-bike tailored to your riding style.
